Module used to integrate with a Actron AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

Ultra Slim \ low profile series only​

Compatibility​

SeriesIndoorOutdoor
Ultra Slim \ low profile series onlyLRE-###ASURC-###AS

Connection​

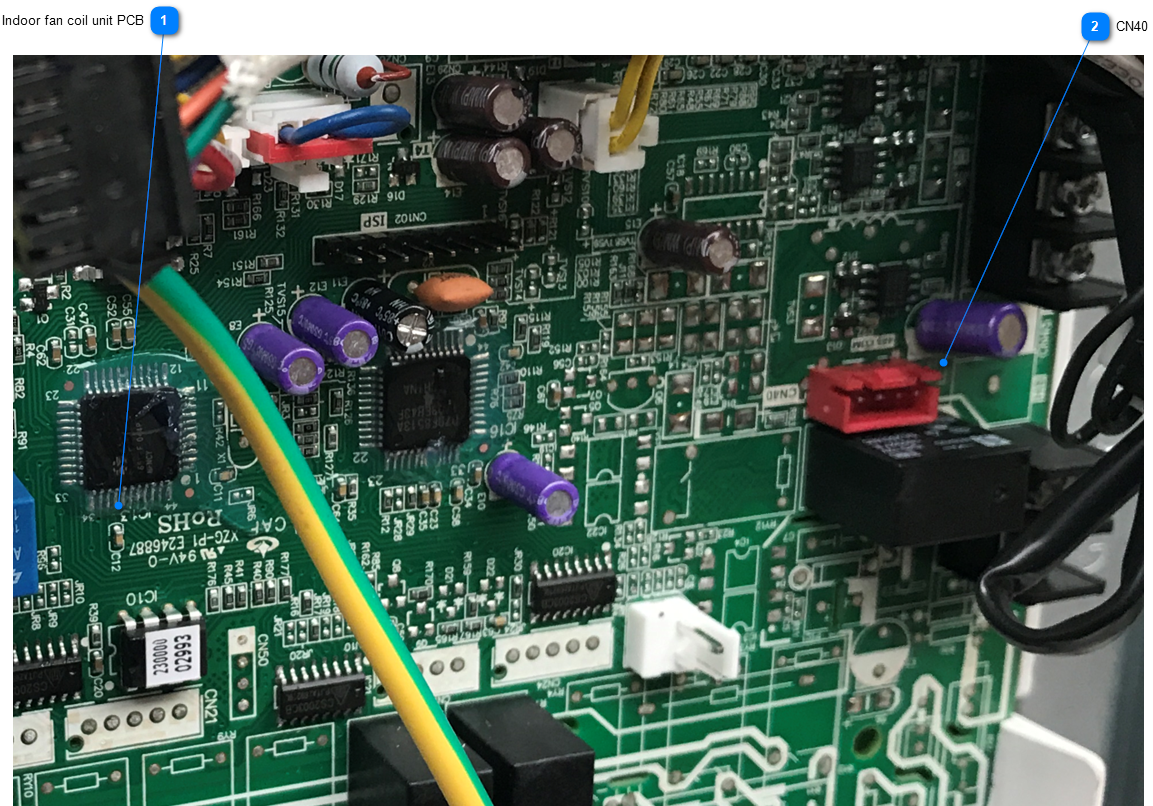

Polarity is critical see below, for correct connection Actron PCB
Actron PCB

Actron Wiring
Ensure the cable is shielded, 2 core, twisted pair. This cable is pre-terminated suitable for CN40 connector and is supplied by iZone

Notes​

PLEASE DO NOT CONNECT AC UNIT CONTROL CABLE TO HA-HB ON INDOOR BOARD - THIS WILL LEAD TO IZONE CPU DAMAGE.

Firmware and Updates​

C325A​

  • No firmware.
