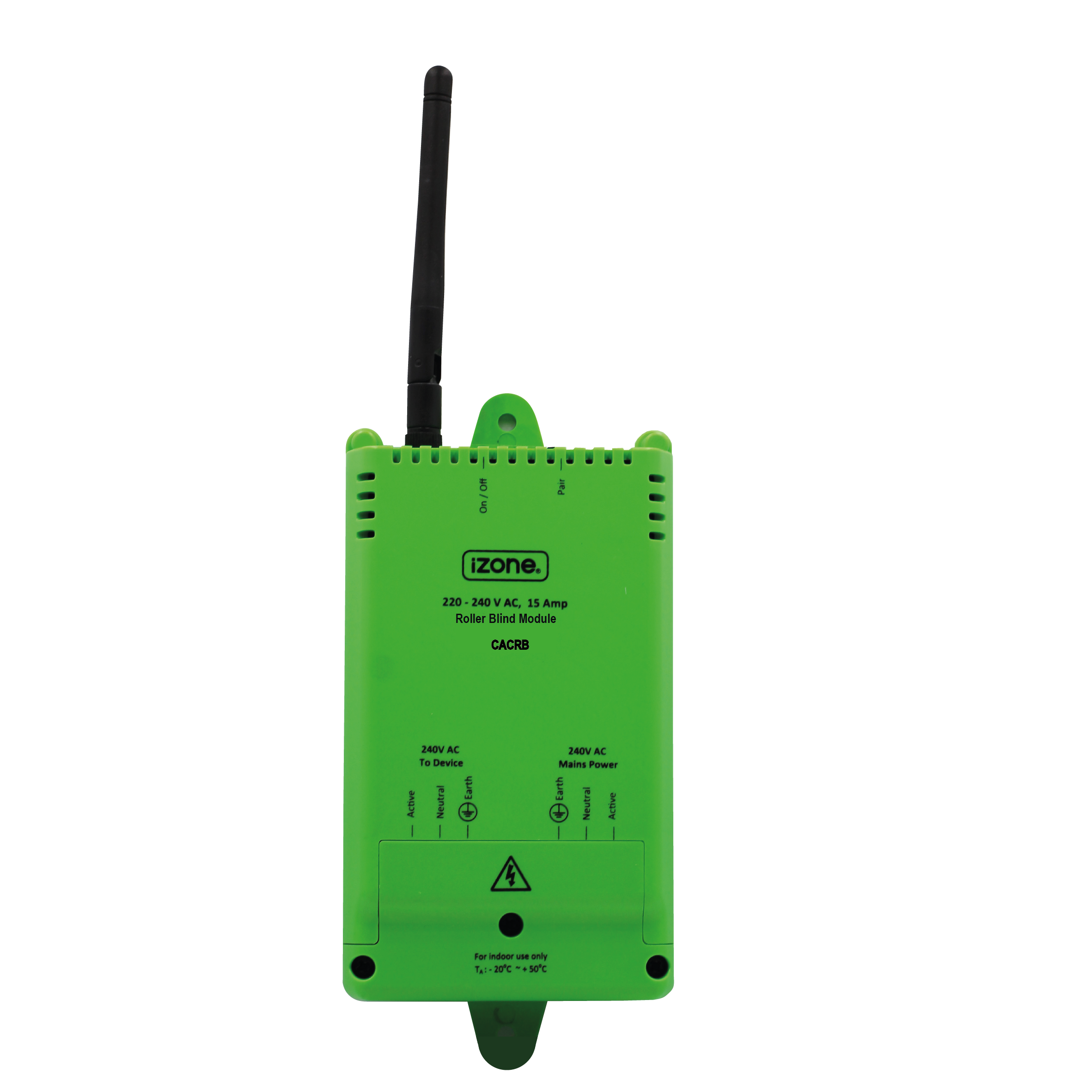

Roller blind module

Part number: CACRB

Overview

The Roller blind module is hard wired to the mains power and uses wireless RF for the control communication. This module is only suitable for locating indoors however, it can control blinds which have a suitable rating that are located outdoors or in wet areas. It communicates using 433 MHz RF and is controlled through the Nova user interface when paired with a Smart Hub (COCBH).

Installation Guides

This product must be installed by a licensed electrician in accordance with AS/NZS 3000. Please note that there are many different blind motor brands, makes, and models available, but only a 4-wire motor design (containing a live wire, neutral wire, and two control wires) is compatible with the iZone Roller Blind Module. All roller blind motors must be fitted with mechanical stops, electronic stops will not work correctly.

If the roller blinds are to be run in parallel (more than one blind operated by a single iZone roller blind module) the motors used must be suitable for parallel configuration. If the motors are not suitable for parallel operation you will need to install one iZone roller blind module for each roller blind. You can still operate them as a single blind by grouping the iZone roller blind modules in the configuration menu.

Check with your roller blind supplier to ensure the motors you are using are correct. There are probably many more makes of blind motors that will work with the iZone module so please let us know if you successfully use a motor that is not listed above and we will add it to the appropriate section.

Single blinds ( Non parallel operation)

• Alpha WSS40
• ACMEDA Automate ML45
• Motolux 802133000 (MT35-6-28-240/50)

Multiple blinds ( Parallel operation of multiple blinds from a single iZone module)

• Becker motors – Model P5-30-E12 Motor
• Motolux 802131000 (MT35P-6-28-240/50)

Physical Installation

1. Isolate the mains power before starting any work.
2. Remove the bidirectional relay module from its packaging.
3. Verify that the roller blind motor is a compatible 240V four-wire motor with mechanical stops.
4. Remove the terminal cover and terminate the roller blind motor wiring as shown on the module casing.
5. If multiple roller blind motors support parallel operation, they may be connected to a single module up to a maximum load of 5A.
6. If the roller blind motors do not support parallel operation, install one CACRB module for each blind.
7. Mount the module in a suitable indoor location, such as the roof space.
8. Ensure the antenna is tightened and pointing vertically upwards.
9. Restore power and test the roller blind using the manual Up / Down / Stop button.

Pairing with Nova

1. Ensure the bidirectional relay module is powered on.
2. Press the Pair button on the module.
3. From the Nova user interface, navigate to Menu → Devices → Add Device (+) → Blinds & Curtains → Roller Blind Controller.
4. Press Pair.
5. The blue LED beside the pair button will flash to indicate the module is pairing.
6. Rename the module to something meaningful, such as Living Room Blinds or Bedroom Blinds, to make it easier to identify within Nova.

Documents

User Guides

Controlling Roller Blinds

1. From the Nova home screen, select Categories.
2. Select Blinds & Curtains.
3. Select the blind you wish to control.
4. From this page you can:
   • Open the blind.
   • Close the blind.
   • Stop the blind while it is moving.

Pinning a Roller Blind

For quicker access, a roller blind can be pinned to the Nova home screen.

1. Open Categories → Roller Blinds.
2. Select the roller blind you want to pin.
3. Press the Pin icon.
4. The roller blind will now appear on the Nova home screen for quick access.

Troubleshooting

No known issues have been documented for this product at this time.

Specifications

Specification	Description
Model number	CACRB
Certification	AS/NZS 61058, C-Tick N29007
Power supply	220–240VAC 50Hz
Power consumption	2.35W maximum (relay on, no load) 1.05W minimum (relay off)
Maximum connected load	5A
Connection	Hard wired
Control frequency	433MHz
Operating temperature	-20°C to +50°C
Environment	Suitable for indoor use only
Compatibility	240V four-wire motors with mechanical stops suitable for home automation
Dimensions	150H × 85W × 36D mm (excluding antenna and mounting lugs)
Weight	220g

Firmware and Updates

TBC
