Module used to integrate with a Kaden AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

KD Series​

Compatibility​

SeriesIndoorOutdoorAC Unit module
Single Phase - 7kw / 17kwKD###-C325KAD

Connection​

  • Polarity is critical
  • Connect a 2 core + earth, twisted pair control cable. This cable is supplied by iZone - CACUCM15

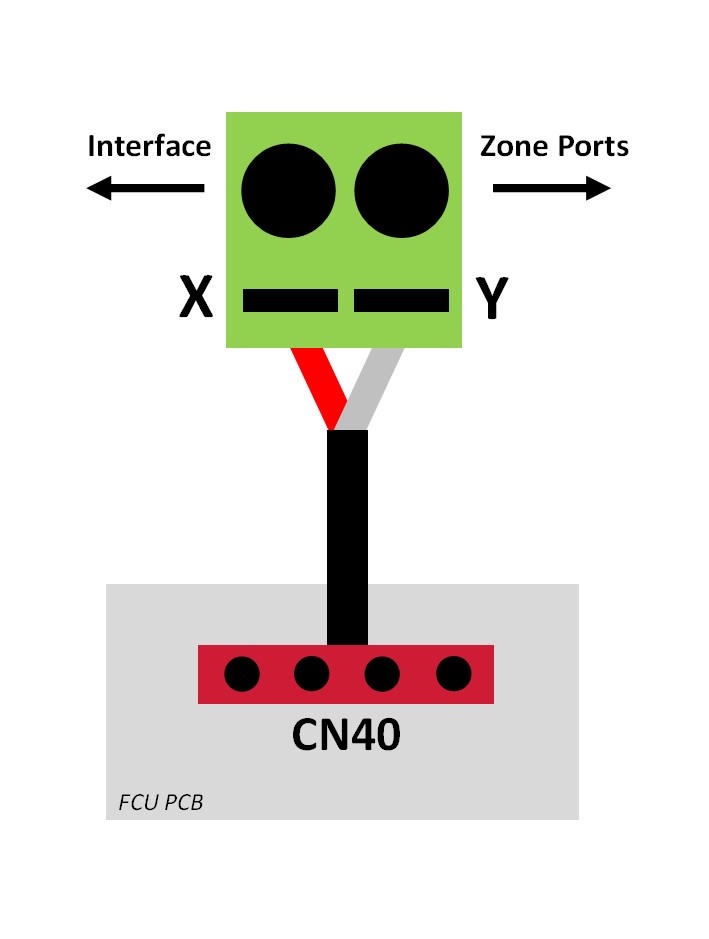

  • Connect C225 / C325KAD X / Y with cable pins.
  • Connect cable to the CN40 port on the fan coil PCB in accordance with Kaden instructions.

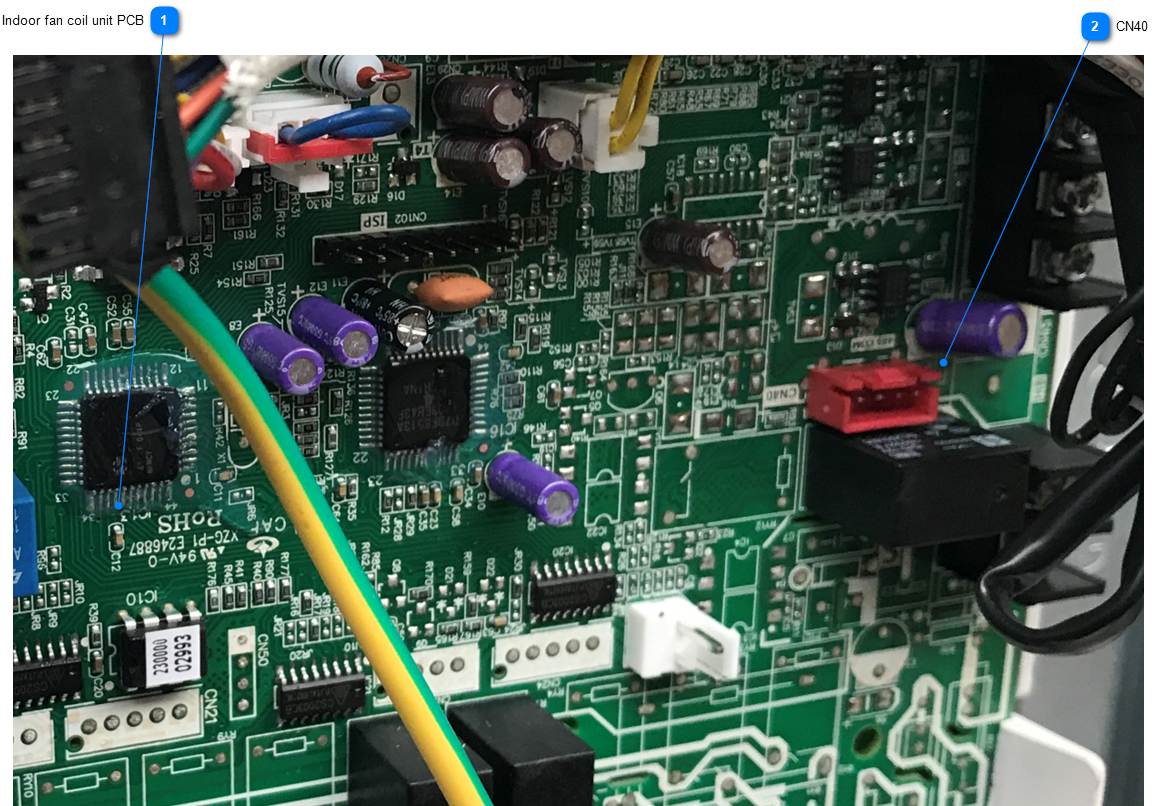

kaden kd pcb iZone CN40 CN40

Notes​

None

Firmware and Updates​

C325KAD​

  • No Firmware
