Rinnai

Module used to integrate with a Rinnai AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

DINLR XX Series

Compatibility

Series	Column 1	Column 2	AC Unit module
	DINLR07Z72	DINLR14Z72	C325R
	DINLR10Z721	DINLR17Z72	C325R

Connection

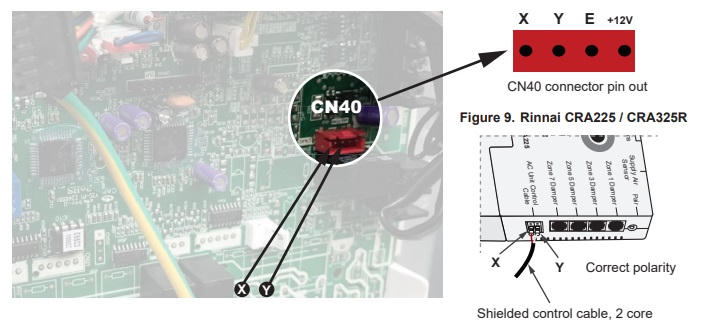

CN40 Connection

• Polarity is critical.
• Connect a 2-core + earth twisted-pair control cable from the C225 / C325R to the CN40 port on the fan coil unit.
• Cable supplied by iZone: CACUCM15

Notes

⚠️ Important Safety Notice

DO NOT connect the AC unit control cable to the HA/HB (CN45) terminal on the indoor board unless the unit is specifically listed as compatible for HA/HB connection.

Incorrect connection will result in iZone CPU damage.

DINLR XX A Series

Compatibility

Series	Indoor	Outdoor	AC Unit module
Rinnai Inverter Multi Split System	DINLR07B1A	DONSR07B1LA	C325R2
Rinnai Inverter Multi Split System	DINLR09B1A	DONSR09B1LA	C325R2
Rinnai Inverter Multi Split System	DINLR11B1A	DONSR11B1LA	C325R2
Ducted Reverse Cycle Inverter	DINLR13B1SA	DONSR13B1LA	C325R2
Ducted Reverse Cycle Inverter	DINLR15B1SA	DONSR15B1LA	C325R2
Ducted Reverse Cycle Inverter	DINLR15B1SA	DONSR15B1TA	C325R2
Ducted Reverse Cycle Inverter	DINLR18B1SA	DONSR18B1TA	C325R2

Connection

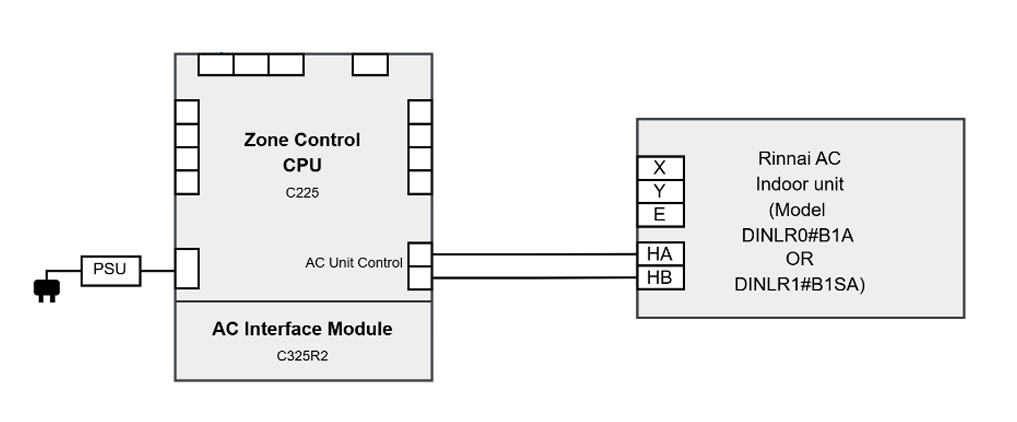

HA/HB Connection (CN45)

• Polarity is not critical.
• A 2-core twisted pair control cable must be connected from the C225 / C325R2 controller to the HA/HB (CN45) port on the fan coil unit.
• Cable supplied by iZone: CACUCM15
• Connect the AC unit communication cable from the fan coil unit to the C225 as indicated.

Notes

None

Ducted Air Conditioning 20kW+

Compatibility

Series	Indoor	Outdoor	AC Unit module
20-24kW Ducted Air Conditioner R410A	DINLR20Z1SA	DONSR20Z3TA	C325R
High Static Ducted Reverse Cycle Air 3 Phase	DINLR20Z7	DONSR20Z9	C325R
High Static Ducted Reverse Cycle Air 3 Phase	DINLR24Z7	DONSR24Z9	C325R

Connection

CN99 connection

• Polarity is critical.
• Connect a 2-core + earth twisted-pair control cable to the C225 / C325R
• Attach 3-pin to 4-pin loom adaptor to the cable.
• Connect cable to CN99 port on the fan coil unit.
• Cable supplied by iZone: CACUCM15

CN9 Connection

• Polarity is critical.
• Connect a 2-core + earth twisted-pair control cable to the C225 / C325R
• Connect cable to CN9 port on the fan coil unit.
• Cable supplied by iZone: CACUCM15

Notes

1. Power Down the System
   1. Turn off the power to both the indoor and outdoor units.
2. Clear Indoor Unit Addresses

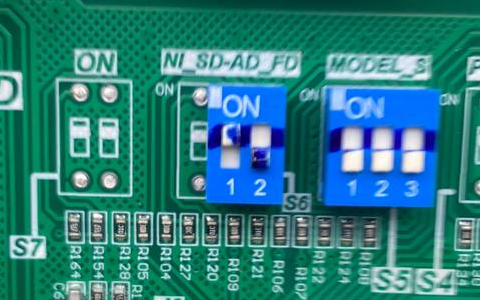

   1. On the outdoor unit control board, locate the S6 DIP switch.

   2. Move DIP switch 1 on S6 to the ON position to clear the indoor unit addressing.

3. Power Cycle the Units
   1. Wait 5 minutes.
   2. Turn the power back on to both the indoor and outdoor units.
   3. Wait another 5 minutes, then turn both units off again.
4. Return to Automatic Addressing

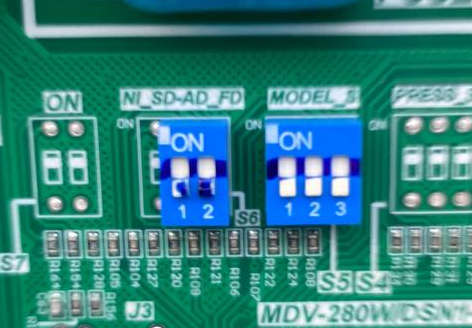

   1. On the oudoor unit control board, locate the same S6 DIP switch

   2. Move DIP switch 1 on S6 to the OPPOSITE position (the position opposite of ON).

5. Reconnect the iZone system to the indoor unit.
6. Restore Power
   1. Turn the power back on to both indoor and outdoor units and wait 5 minutes.
   2. You can now operate the AC system through iZone.

Ducted Reverse Cycle Inverter R32 models (7-18 kW)

Compatibility

Series	Indoor Unit	Outdoor Unit	AC module
Ducted Reverse Cycle Inverter (B1 Series, R32) 7 kW	DINLR07B1	DONSR07B1	C325R
Ducted Reverse Cycle Inverter (B1 Series, R32) 9 kW	DINLR09B1	DONSR09B1	C325R
Ducted Reverse Cycle Inverter (B1 Series, R32) 11 kW	DINLR11B1	DONSR11B1	C325R
Ducted Reverse Cycle Inverter (B1 Series, R32) 13 kW	DINLR13B1	DONSR13B1	C325R
Ducted Reverse Cycle Inverter (B1 Series, R32) 15 kW	DINLR15B1	DONSR15B1	C325R
Ducted Reverse Cycle Inverter (B1 Series, R32) 18 kW	DINLR18B1	DONSR18B1	C325R

Connection

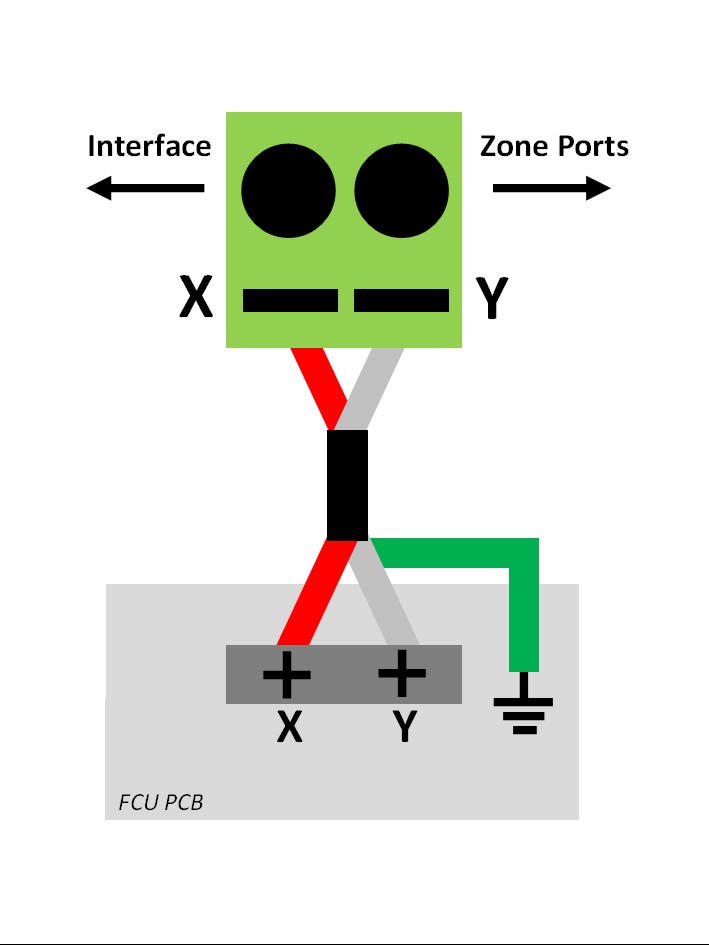

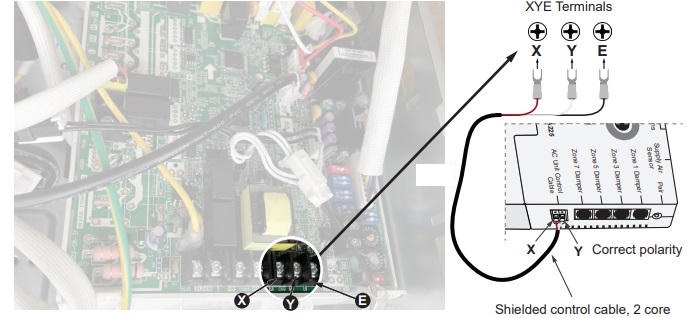

CNXYE Connection

• Polarity is critical.
• Connect a 2-core + earth twisted-pair control cable to the C225 / C325R
• Connect cable to CNXYE port on the fan coil unit.
• Cable supplied by iZone: CACUCM15

Notes

None

Firmware and Updates

C325R

C325R - Sep 2026

• Changed resistor values
• Added transistors for polarity inversion

C325R2

C325R2 1.3 - May 2026

• Fixed an issue when attaching an OEM wall controller will need AC restart for iZone to work.

C325R2 1.2 - Apr 2026

• Fixed an issue where Auto Mode and Auto Fan Mode could switch modes unexpectedly.
• Fixed an issue where Heat Mode and Cool Mode could switch to Fan Mode when turning off.

C325R2 1.1 - Apr 2026

• Added fix to tester message.

C325R2 1.0 - Mar 2026

• Initial release to production (Requires: C225 v3.79)
