Module used to integrate with a Samsung AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.
Duct Type Series
Compatibility
| Series | Indoor | Outdoor | AC Unit module |
|---|---|---|---|
| High Static Duct System | AC140HBHFKH/SA | C325S | |
| High Static Duct System | AC120HBHFKH/SA | C325S | |
| High Static Duct System | AC100HBHFKH/SA | C325S | |
| High Static Duct System | AC90HBHFKH/SA | C325S | |
| High Static Duct System | AC71HBHFKH/SA | C325S |
Connection
- ⚠️ Polarity is critical.

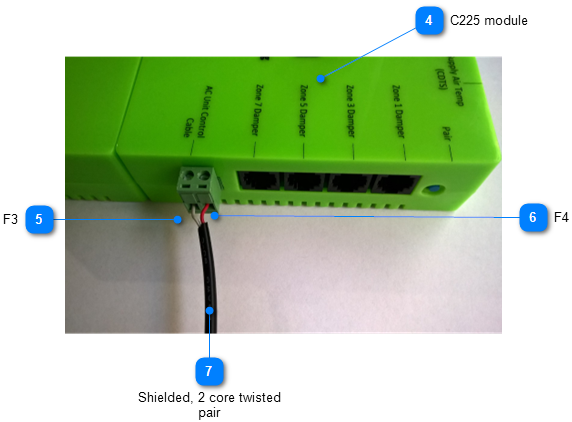

- Connect a shielded, 2-core twisted pair control cable from the C225 / C325S module

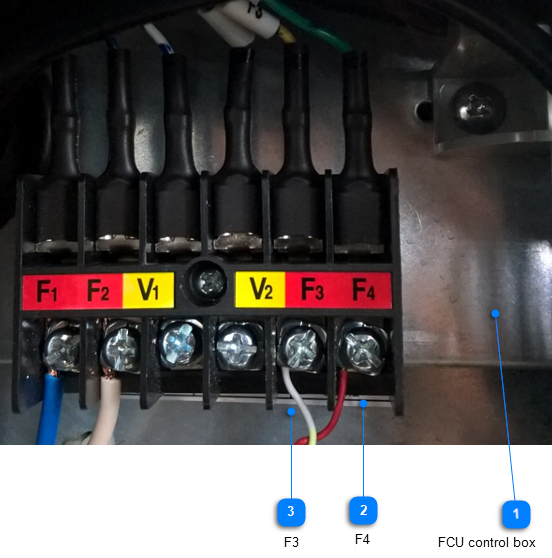

- Connect cable to the F3 / F4 terminals in the fan coil unit (FCU)
- This cable is not supplied by iZone.
Notes
None
Samsung Nasa
Compatibility
| Series | Indoor | Outdoor | AC Unit module |
|---|---|---|---|
| R410A Gas Type - 16kW to 20kW | AC###JNHFKH/SA | C325SN | |
| R32 - 5kW to 16kW | AC###TNHPKG/SA | C325SN |
Connection
- Polarity is critical.
- Connect a shielded, 2-core twisted pair control cable to the C225 / C325SN
- Connect cable to F3 / F4 terminals in the fan coil unit.
- This cable is not supplied by iZone.
Firmware and Updates
C325S
- No Firmware.
C325SN
C325SN 1.0 - Jun 2020
- First release
