York

Module used to integrate with a York AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

York AC Units​

Compatibility​

SeriesIndoorOutdoorAC Unit module
6850018C325Y
6850038C325Y
6850048C325Y

Connection​

  • Polarity is critical
  • Connect a 2 core + earth, twisted pair control cable to the C225 / C325Y
  • Connect the cable to the X / Y terminals in the fan coil unit.
  • This cable is supplied by iZone: CACUCM15

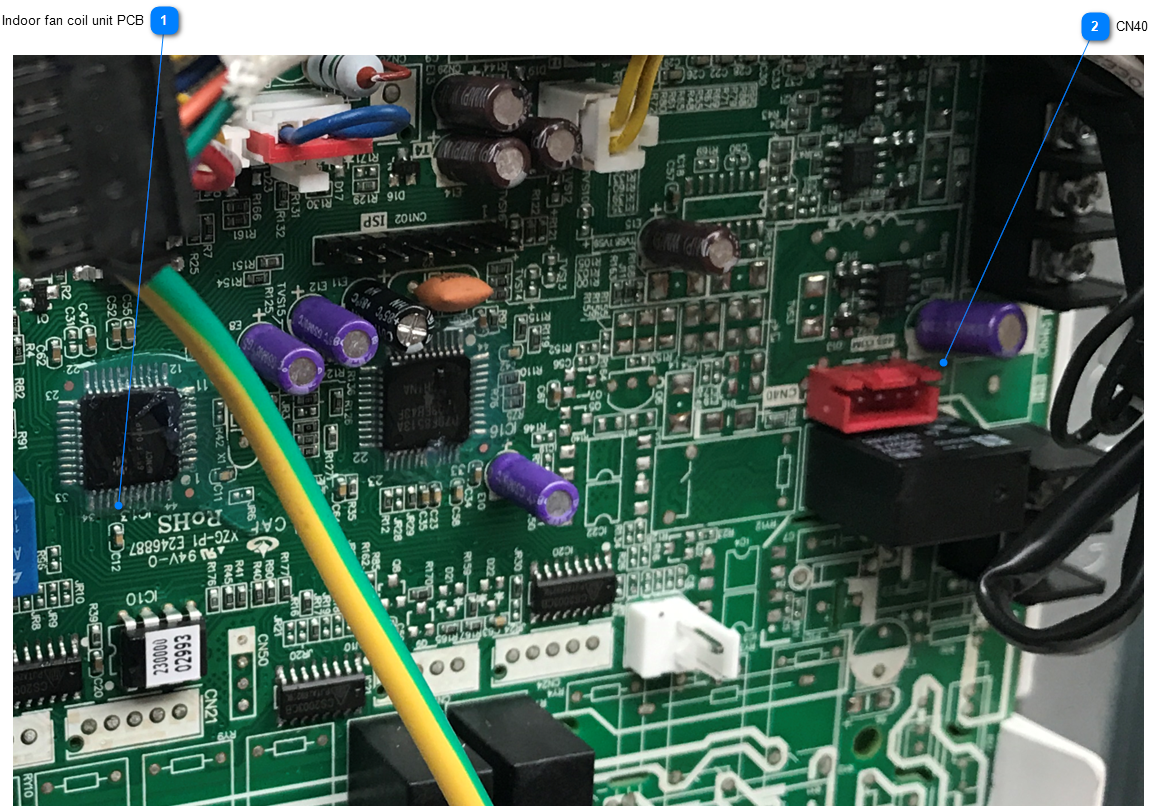

CN40 connection​

midea CN40 pcb iZone CN40 CN40

Firmware and Updates​

C325Y​

  • No fimrware
