AC split systems

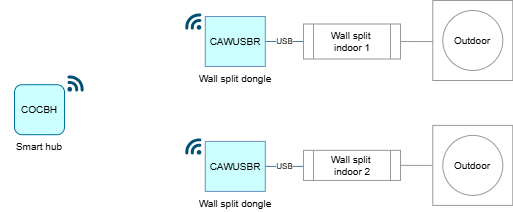

Multiple wall split units

iZone offers a USB Wall Split Dongle (CAWUSBR) that plugs into the USB port of a Rinnai wall split AC unit. This enables users to control multiple wall split units from a single mobile device. Each dongle must be within RF range of a Smart Hub (COCBH) to function.

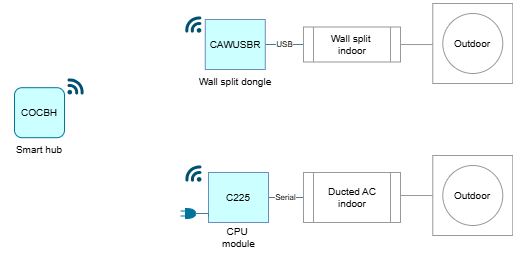

Wall split and ducted AC unit

The USB Wall Split Dongle (CAWUSBR) can also be used in conjunction with iZone’s existing AC ducted zone control systems where a CPU Module (C225) has been installed. A Rinnai wall split AC unit can operate alongside a ducted AC unit, with the wall split treated as an additional zone within the iZone environment. This solution is ideal for Airbnb properties or situations where ducting is not accessible throughout the property.
