Toshiba
Module used to integrate with a Toshiba AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.
Toshiba AC Units
Compatibility
| Series | Indoor | Outdoor | AC Unit module |
|---|---|---|---|
| A series only / S-Net protocol | RAV-SMXXX3DT | C325T2 | |
| 10kW - 16kW | RAV-GMXXXDTP-A | C325T2 | |
| MMD-UP0271HP-E | C325T2 |
Connection

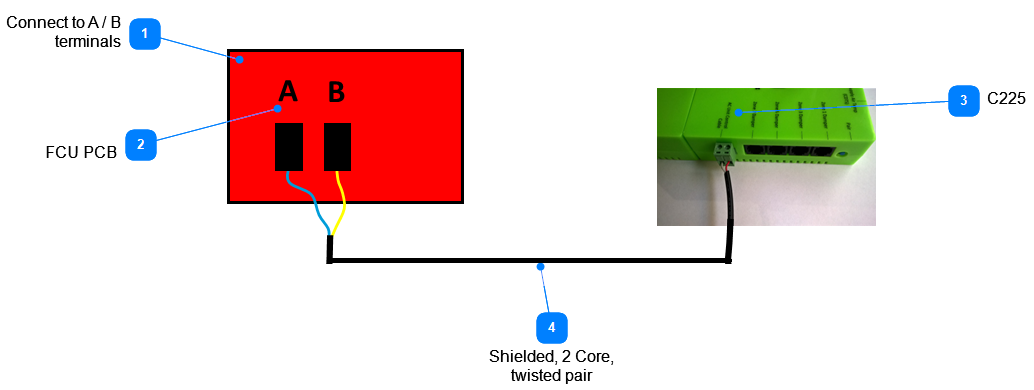

- Take the Remote Controller (A/B) control wire from the fan coil unit.
- Connect it to the AC Unit Control Cable on the C225 / C325T2 module.
- Connect wires to the A and B terminals.
- Polarity is not critical.
- This cable is not provided by iZone.
Notes
None
Firmware and Updates
C325T2
- See C325P2 for firmware updates.
