Midea
Module used to integrate with a Midea AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.
DUC Series Only
Compatibility
| Series | Indoor | Outdoor | Module |
|---|---|---|---|
| DUC Series Only | - | - | C325MD |
Connection
- Polarity is critical
- Connect a 2 core + earth, twisted pair control cable to the X / Y terminals on C225 / C325MD
- Connect the cable to the CN40 port on the fan coil unit.
- This cable is supplied by iZone:
CACUCM15
CN40 connection
Notes
None
Middle & High Static Pressure Duct Type
Compatibility
| Series | Indoor Unit | Outdoor Unit | Module |
|---|---|---|---|
| High Static Pressure 14.0kW | DUCMI140IHC | UCMI140OC | C325R2 |
| High Static Pressure 17.0kW | DUCMI170IHC | UCMI140OC | C325R2 |
Connection
- Polarity is NOT critical
- A 2-core twisted-pair control cable must be connected to the C225 / C325R2 controller
- Connect the cable to the HA/HB (CN45) port on the fan coil unit.
- This cable is supplied by iZone:
CACUCM15

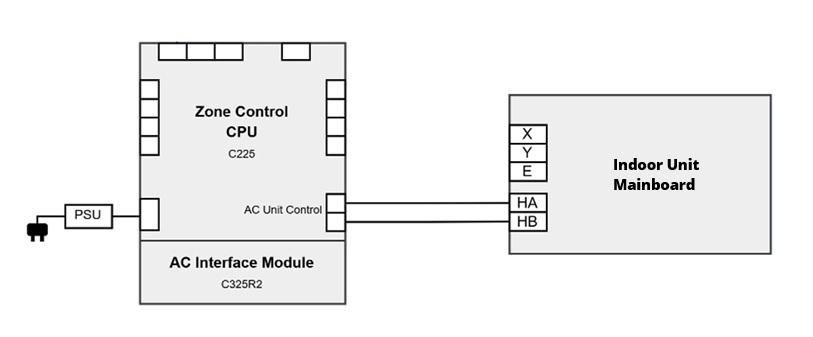

CN45 HA/HB Connection
Connect the AC unit communication cable from the fan coil unit to the C225 as indicated.
Notes
None
Firmware and Updates
C325MD
- See C325R firmware for firmware details.
C325R2
- See C325R2 firmware for firmware details.
