Compatible Zone Motor Brands
Compatible Brands
Please note: All zone motor brands on a single system must be unified across all zones to ensure consistent drive timing. Using a mix of different zone motor brands or models may result in operational failures and damper errors due to different timing and RPM.
- iZone
- Belimo
- Advantage Air
- Siemens
- Polyaire
- CAS (Complete Air Supply)
- RZM (Red Zone Motors)
Zone Motor Specifications
| Zone motor brand | Volts | Hz | Timing (sec) | RPM (if measured) | Compatible with iZone |
|---|---|---|---|---|---|
| Belimo | 24 VAC/DC | 50/60 Hz | 45 | Yes | |
| ZoneBoss | 24 V | 50/60 Hz | 15 | 1 | Yes |
| Siemens | AC 24 V +/-15% | 50/60 Hz | 19 | Yes | |
| Westaflex | AC 24 V | 50 Hz | 15 | 1 | Yes |
| PolyAir | 24 V | 50 Hz | 15 | 1 | Yes |
| MZD Laxo | 24 V | 50 Hz | 15 | 1 | Yes |
Please check the damper timing and verify the wiring diagram for the RJ11 or RJ12 connections, including the OPEN and CLOSE points and motor speed, before integrating the system with iZone.
RJ12 Connector
Earlier models may be fitted with an RJ11 connector.

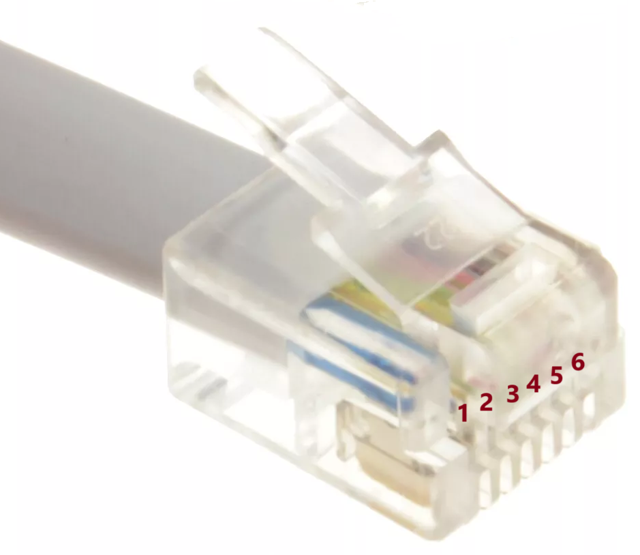

The pinout for the RJ12 connector is shown below:
