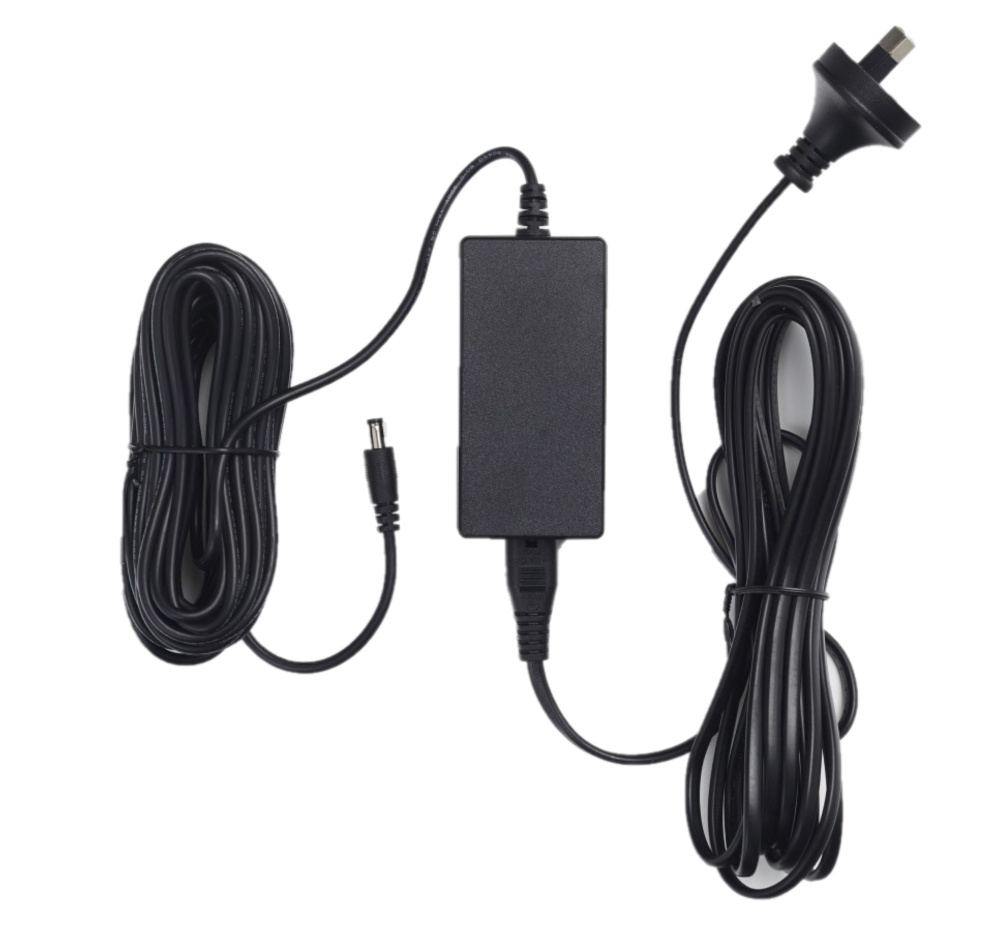

35m Nova power supply
Part number: CTDC35
Overview
The CTDC35 is a AC/DC power supply for the Nova DC wall controller (CCASLW) and Nova Mini DC wall controller (CCASSW). A 12m Nova power supply (CTDC12) normally included in a Nova DC zone control kit but this can be replaced with a 35m variant.
Installation Guides
Plug the 35m Nova power supply into an earthed GPO. Route the DC cable to the Nova or Nova Mini wall controller location. Connect the DC plug to the power input on the rear of the controller.
User Guides
The 35m AC/DC cable is a passive communication cable and does not require any configuration or user interaction after installation.
Troubleshooting
No known issues have been documented for this product at this time.
Specifications
| Specifiation | Description |
|---|---|
| Connectors | GPO socket and 2.1mm DC jack |
| Transformer | 240VAC to 12VDC (1.5A) |
| Cable length | 35m (27m AC + 8m DC) |
Firmware and Updates
No firmware information
