Carrier
Module used to integrate with a Carrier AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.
Ducted AC units
Compatibility
| Series | Indoor | Outdoor | AC Unit module |
|---|---|---|---|
| High Static ( 9.5kW ) | 42SHDV095 | 38SHDV095 | C325C |
| High Static ( 10.5kW ) | 42SHDV105 | 38SHDV105 | C325C |
| High Static ( 12.5kW ) | 42SHDV125 | 38SHDV125 | C325C |
| High Static ( 14kW ) | 42SHDV140 | 38SHDV140 | C325C |
| High Static ( 16.5kW ) | 42SHDV165 | 38SHDV165 | C325C |
| Inverter High Static ( 8.6kW ) | 42QSH090D8S | 38QSH090D8S | C325C |
| Inverter High Static ( 10.05kW ) | 42QSH105D8S | 38QSH105D8S | C325C |
| Inverter High Static ( 12.0kW ) | 42QSH125D8S | 38QSH125D8S | C325C |
| Inverter High Static ( 13.6kW ) | 42QSH140D8S | 38QSH140D8S | C325C |
| Inverter High Static ( 16.2kW ) | 42QSH170D8S | 38QSH170D8S | C325C |
Connection
- Polarity is not critical

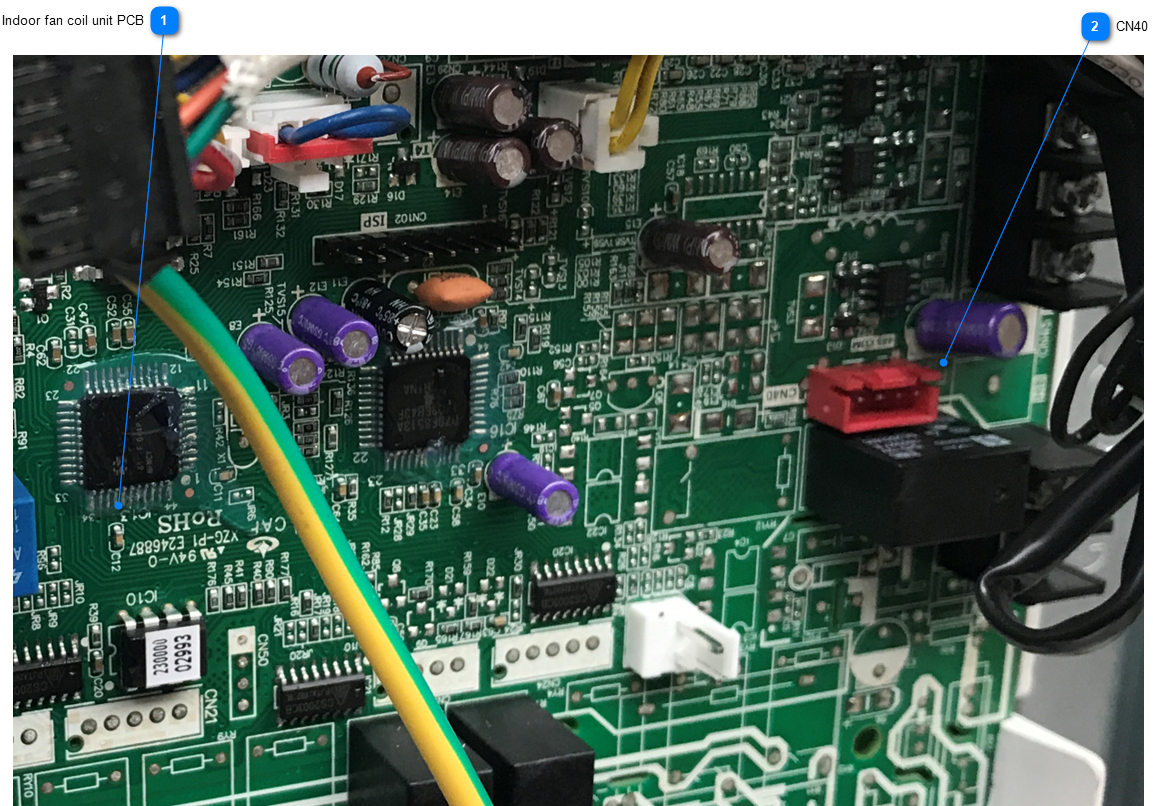

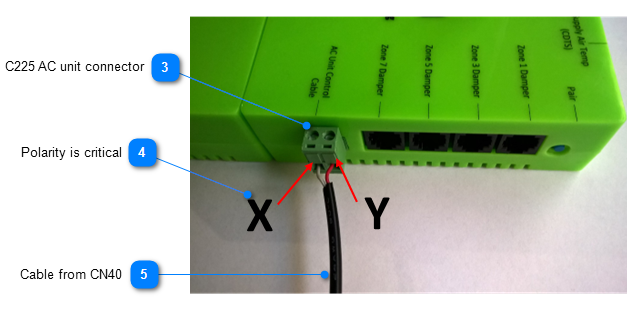

- Connect a shielded, 2 core, twisted pair control cable from the C225 / C325A to the X / Y in the fan coil unit. This cable and connector is supplied by iZone - CACUCM15
Notes
None
Firmware and Updates
C325C
- No firmware.
