Power monitor kit

Part number: CPMK

Overview

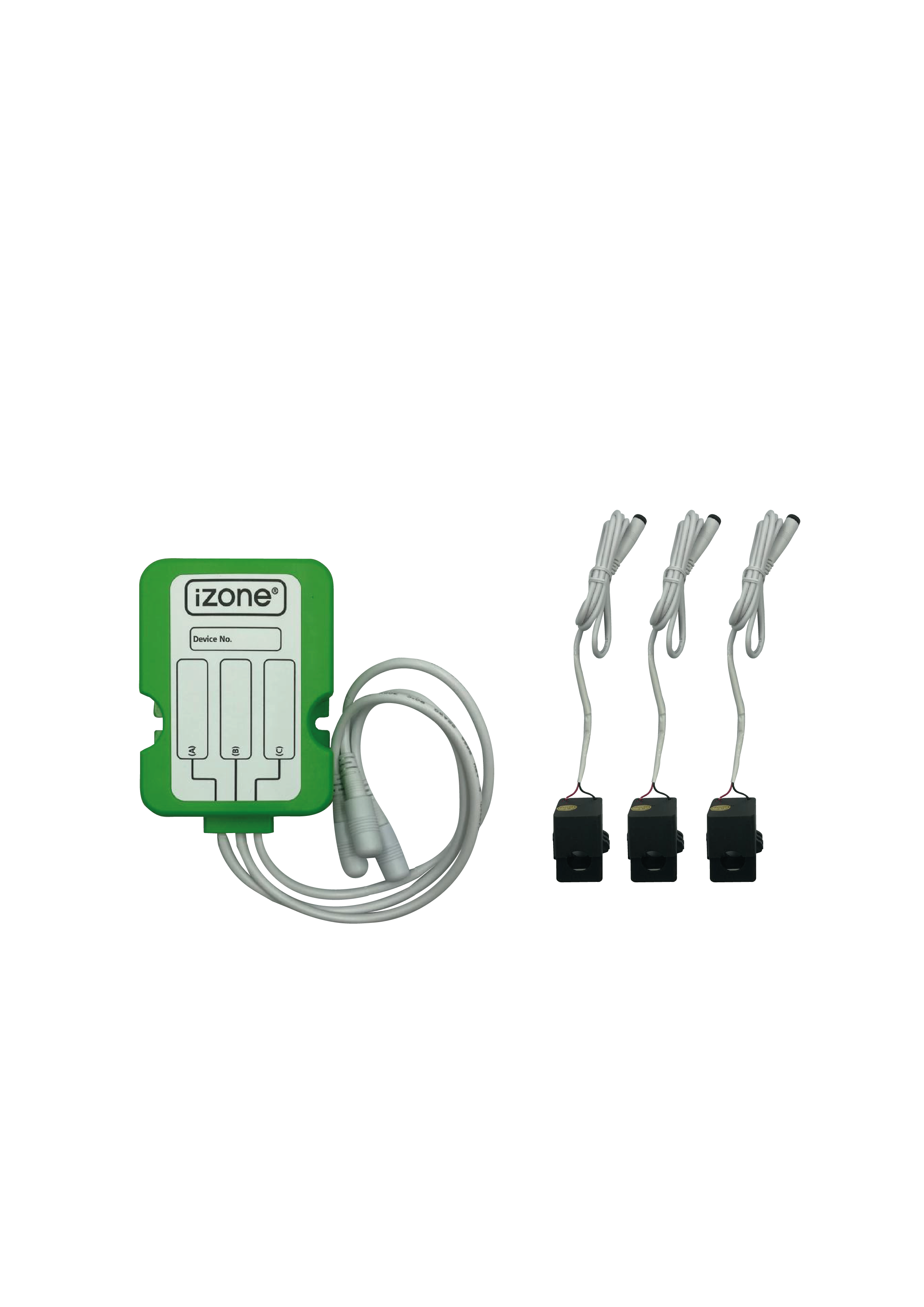

The CPMK is a power monitoring kit that measures electrical energy consumption using current transformer (CT) sensors. When paired with a Smart Hub (COCBH), it allows power usage to be monitored through the Nova user interface.

Installation Guides

Physical Installation

This product must be installed by a licensed electrician in accordance with AS/NZS 3000.

1. Install the batteries into the power monitoring device (CPMD).
2. Pair the CPMD before installing the CT sensor clamps.
3. Install the CT sensor clamps onto the correct active conductors for the circuits being monitored.
4. Ensure each CT clamp is fully closed and locked into place.
5. Route the CT cables through a suitable grommet into the switchboard.
6. If the switchboard is outdoors, ensure the cable entry is weatherproof.
7. Mount the CPMD outside of the switchboard. Do not install it inside a steel switchboard or cabinet, as this will prevent RF communication.

Pairing with Nova

1. Install the two AA batteries into the CPMD.
2. Press the Pair button on the CPMD.
3. From the Nova user interface, navigate to Menu → Devices → Add Device (+) → Power Monitor -> Power Monitor Device.
4. Press Pair.
5. The blue LED will flash rapidly to indicate the CPMD is pairing.
6. Once paired, rename the device to something meaningful, such as Main Supply, Air Conditioner, or Solar, to make it easier to identify within Nova.

Documents

User Guides

Viewing Power Usage

1. From the Nova home screen, select Categories.
2. Select Power Monitoring.
3. Select the power monitoring device you wish to view.
4. From this page you can:
   • View real-time power consumption.
   • View monitored circuits.
   • Monitor overall energy usage.

Pinning Power Monitoring

For quicker access, power monitoring can be pinned to the Nova home screen.

1. Open Categories → Power Monitoring.
2. Select the device you want to pin.
3. Press the Pin icon.
4. The power monitoring device will now appear on the Nova home screen for quick access.

Troubleshooting

No known issues have been documented for this product at this time.

Specifications

Specification	Description
Model number	CPMK
Certification	C-Tick N29007
Power supply	2 × AA batteries
Measured current range	20mA to 80A
Sensitivity	1W increments (minimum 5W)
Accuracy	Up to 98% (monitoring only)
Control frequency	433MHz
Operating temperature	-20°C to +50°C
Environment	Suitable for indoor and outdoor use
Limitations	Up to 3 CT sensors per CPMD (3 single-phase or 1 three-phase circuit). Maximum of 5 CPMD devices per system.
CPMD Dimensions	100H × 70W × 30D mm
CPMD Weight	205g
CPMCT Dimensions	46H × 30W × 30D mm
Maximum cable diameter	15.5mm
CPMCT Weight	90g

Firmware and Updates

TBC
