Module used to integrate with a Bonaire AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

Optima 20kW Ducted R410A​

Compatibility​

SeriesIndoorOutdoorAC Module
Optima 20kW Ducted R410AODT-20IDODT-20ODC325HI

Connection​

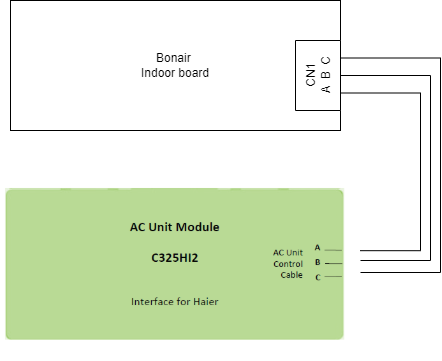

Bonaire Wiring

Boniare Wiring

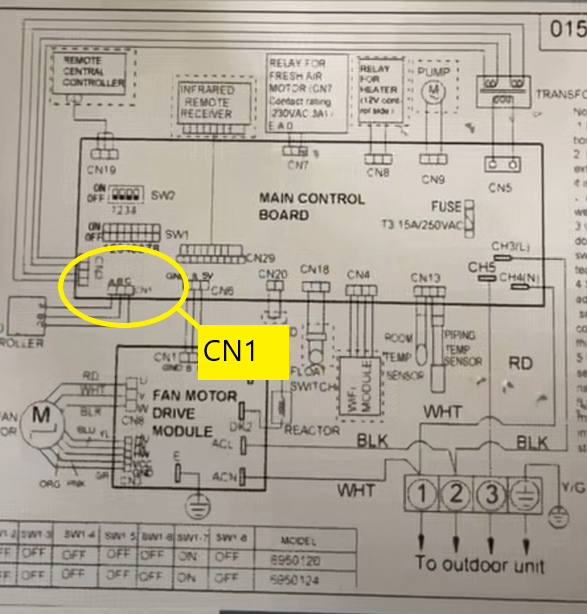

Bonair Schematic

Boniare Schematic

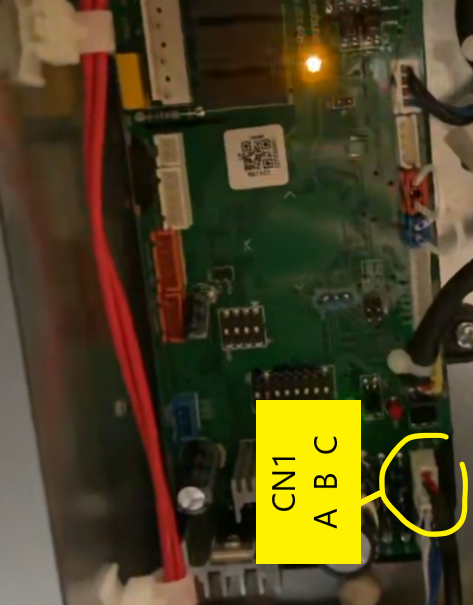

Bonaire PCB

Boniare PCB

Notes​

Polarity IS critical
Bonaire systems 3-wire control.

CTG Series​

Compatibility​

SeriesIndoorOutdoorAC Module
10.5kW ductedCTG100S1AICTG100S1AEC325TC
12.5kW ductedCTG125S1AICTG125S1AEC325TC
14kW ductedCTG140S1AICTG140S1AEC325TC
16kW ductedCTG160S1AICTG160S1AEC325TC

Connections​

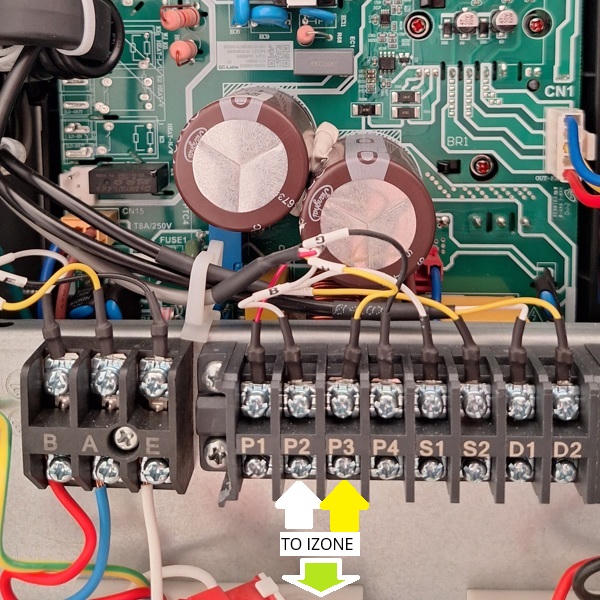

CTG PCB
CTG PCB
Bainare CTG wiring similar to TCL

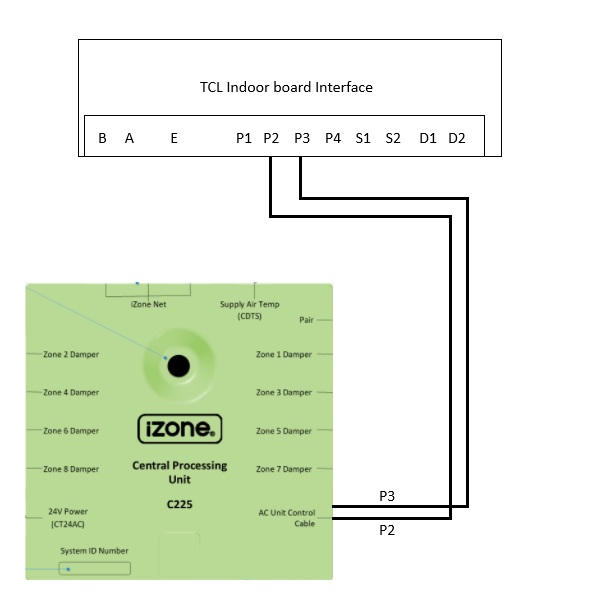

CTG Wiring

Notes​

Polarity IS critical.
CTG compatible models listed operate with the TCL module using 2-wire control.

Firmware and Updates​

C325HI​

  • See Haier for C325HI release notes.

C325TC​

  • See TCL for C325TC release notes.
