Voltage free relay
Part number: CVFR
Overview

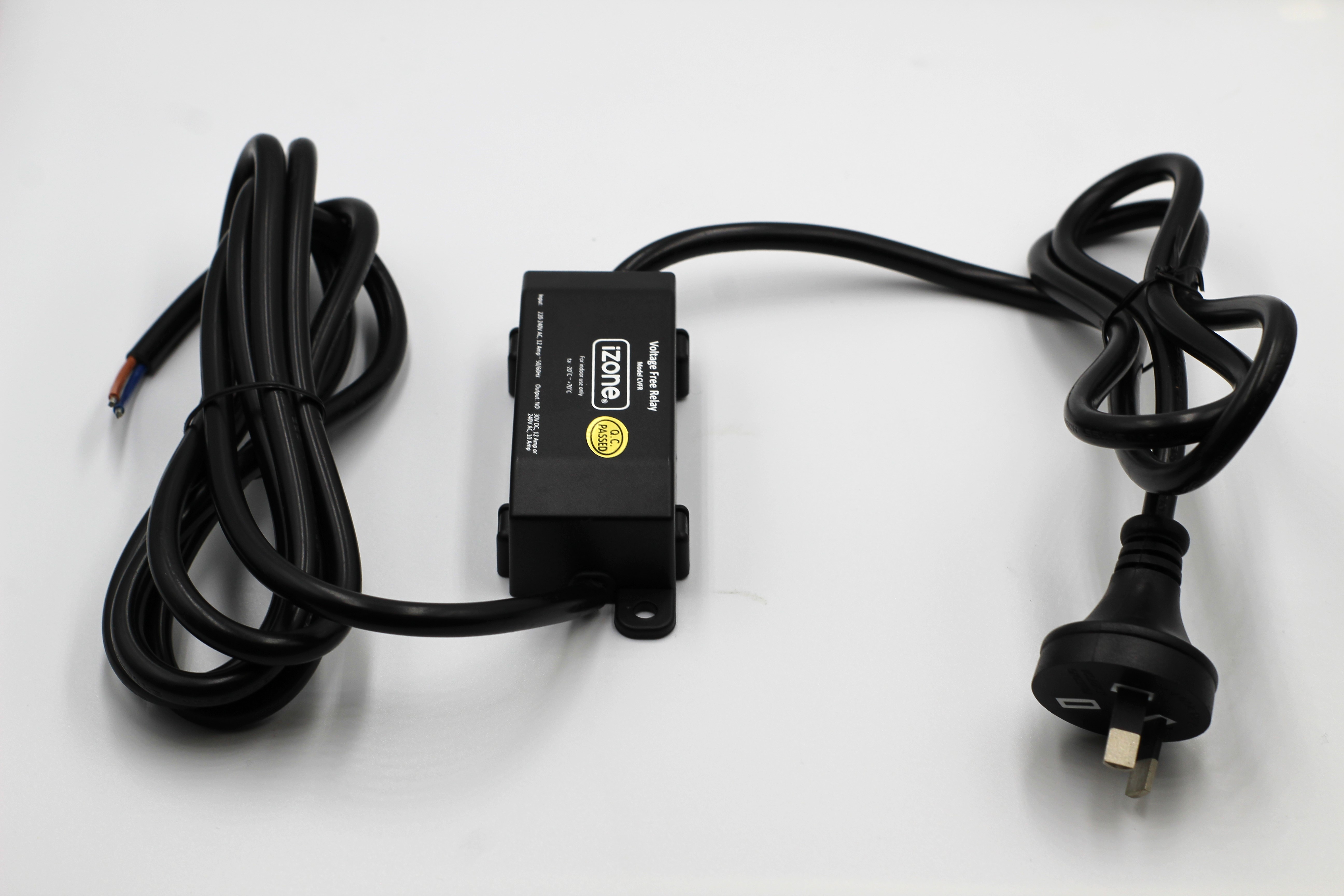

The CVFR is a plug-in voltage free relay (dry contact) used with the Garage Door Control Kit (CGDK). It provides a normally open relay output for controlling compatible devices and is commonly used as part of an iZone garage door installation.
Installation Guides
Physical Installation
- Plug the CVFR into a standard Australian power outlet.
- Connect the voltage free output cable (CN1/CN2) to the device being controlled.
- Mount the relay using the mounting lugs if required.
- Refer to the Garage Door Control Kit (CGDK) installation guide for complete installation instructions.
Pairing with Nova
The CVFR forms part of the Garage Door Control Kit (CGDK) and is paired as part of that installation.
Refer to the Garage Door Control Kit installation guide for pairing and configuration instructions.
Documents
User Guides
The CVFR operates as part of the Garage Door Control Kit.
Refer to the Garage Door Control Kit user guide for operating instructions.
Troubleshooting
No known issues have been documented for this product at this time.
Specifications
| Specification | Description |
|---|---|
| Model number | CVFR |
| Power supply | 220–240VAC 50Hz |
| Maximum output | Normally Open (NO) 30VDC 12A or 240VAC 10A |
| Connection | Australian Plug |
| Operating temperature | -20°C to +70°C |
| Environment | Suitable for indoor use only |
| Dimensions | 28H × 40W × 105L mm (includes mounting lugs) |
| Weight | 272g (including cables and plug) |
Firmware and Updates
TBC
