Navi Zone Control Kit
Part number: C265K
Overview

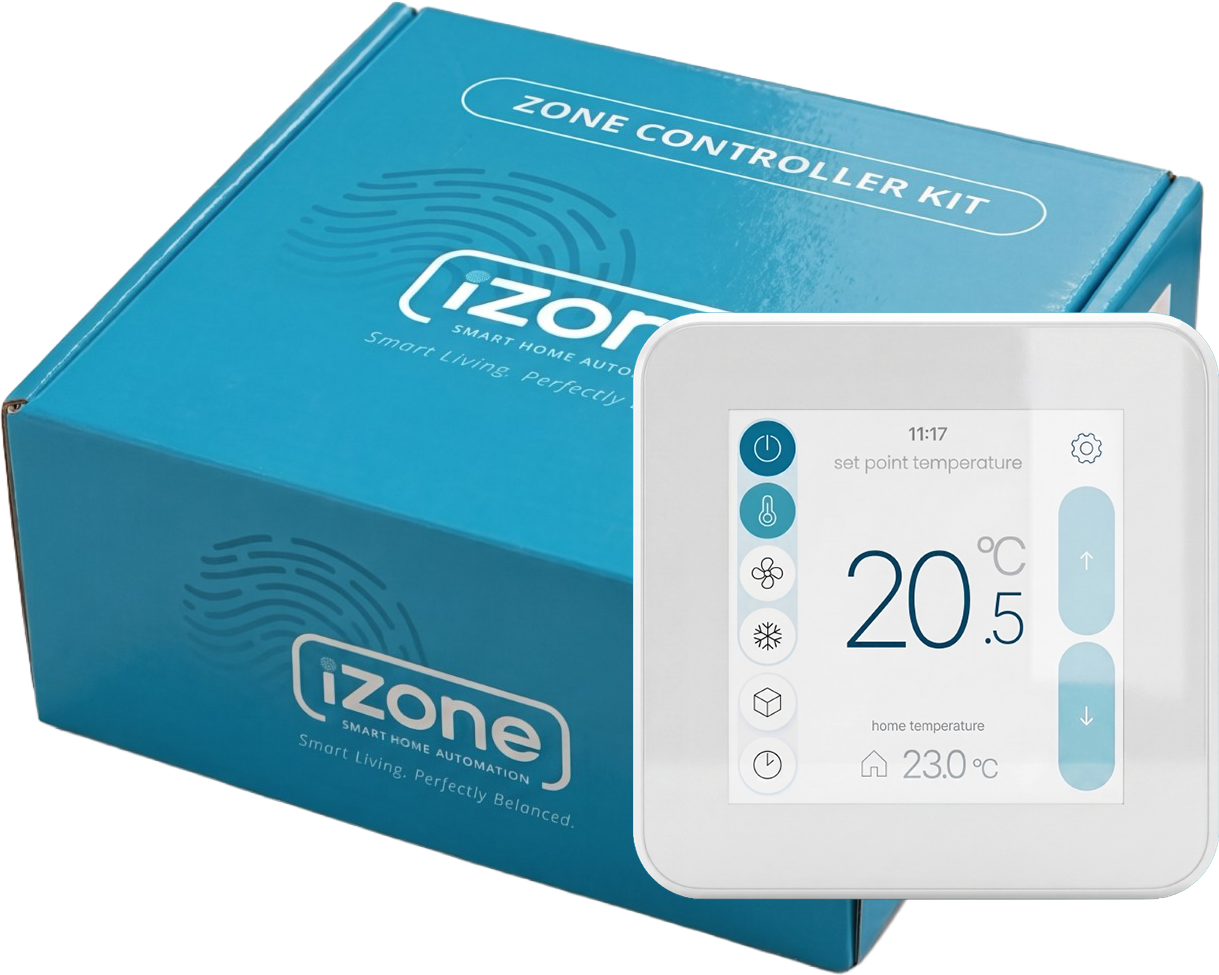

The iZone Navi climate control zone kit uses a CAT5 connection between the Screen Link Module (CSL) and the 4.3" Navi wall controller (CNAW). Wi-Fi connectivity is built directly into the wall controller, enabling mobile control and remote diagnostics. As a result, the kit does not require a Smart Hub (COCBH). It is not possible to pair Wireless Temperature Sensors (CRFSW) to a Navi zone control system. The kit's Lite CPU Module (C156) is not compatible with Belimo zone motors.
Installation Guides
New installation
The Quick installation guide PDF links to the following pages:
- Navi installation guide LINK
- Navi setup guide LINK
Advanced installation
- Add multiple Navi screens
- Upgrade Navi to a Nova system
- Use Navi has an indvidual room controller
User Guides
- Navi user manual PDF
- Navi user guide LINK
- Navi product brochure PDF
- Navi mobile registration steps LINK
- Navi mobile interface user manual LINK
Parts Included
| Part | Description |
|---|---|
| C156 | 8-zone Lite CPU |
| CT24ACE | 24Vac CPU power supply |
| CSL | Screen Link Module |
| CNAW | Navi 4.3" wall controller |
| CDTS | In-duct temperature sensor |
| CFC12S | 12m CAT5 cable |
Support
- For troubleshooting, refer to the Parts Included section.
- For frequently asked questions (FAQs), visit the Support Zone.
- For design guidance and best practices, see the How to Guides.
Specifications
| Specification | Description |
|---|---|
| Dimensions | 163W x 193H x 155D mm |
| Weight | 2.69kg |
