Nano Zone Control Kit
Part number: C420K
Overview

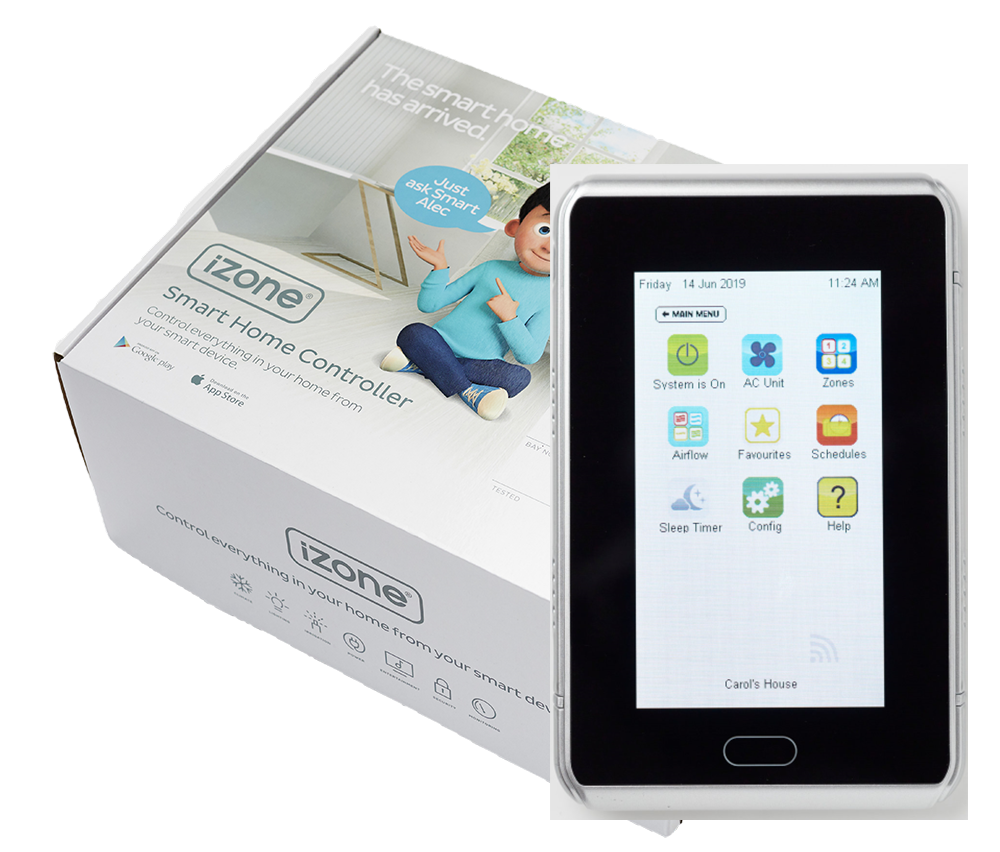

The iZone Nano climate control kit consists of a Central Processing Unit (CPU) module connected to an embedded 4″ colour touch screen for local system control. It supports 8 zones as standard, with the ability to expand up to 14 zones by adding a zone extender module (CEXT). A Smart Hub (COCBH) can also be integrated to enable convenient control and monitoring of the system via a mobile device.
Installation Guides
User Guides
Nano user manual PDF
Parts Included
| Part | Description |
|---|---|
| C225 | 8-zone CPU |
| CT24ACE | 24Vac CPU power supply |
| CCTSSW | Nano 4" touch screen |
| CDTS | In-duct temperature sensor |
| CFC12S | 12m CAT5 cable |
Support
- For troubleshooting, refer to the Parts Included section.
- For frequently asked questions (FAQs), visit the Support Zone.
- For design guidance and best practices, see the How to Guides.
Specifications
| Entry | Description |
|---|---|
| Dimensions | 320W x 140H x 300D mm |
| Weight | 3.120kg |
