Fujitsu
Module used to integrate with a Fujitsu AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.
R410 Gas Type - ARTG Series
Compatibility
| Series | Indoor | Outdoor | AC Unit module |
|---|---|---|---|
| High Static Single Phase - Compact Outdoor | ARTG30LHTA | AOTG30LATL | C325F2 |
| ARTG36LHTA | AOTG36LATL | C325F2 | |
| ARTG45LHTA | AOTG45LATL | C325F2 | |
| ARTG60LHTA | AOTG60LATL | C325F2 | |
| ARTG54LHTC | AOTG54LCTL | C325F2 | |
| High Static Infinity Range - Single Phase ONLY | ARTG45LDTA (single phase) | AOTG45LBTA | C325F2 |
| ARTG54LDTA (single phase) | AOTG54LBTA | C325F2 | |
| ARTG60LDTA (single phase) | AOTG60LBTA | C325F2 | |
| High Static Three Phase | ARTC72LATU | AOTA72LALT | C325F2 |
| ARTC90LATU | AOTA90LALT | C325F2 |

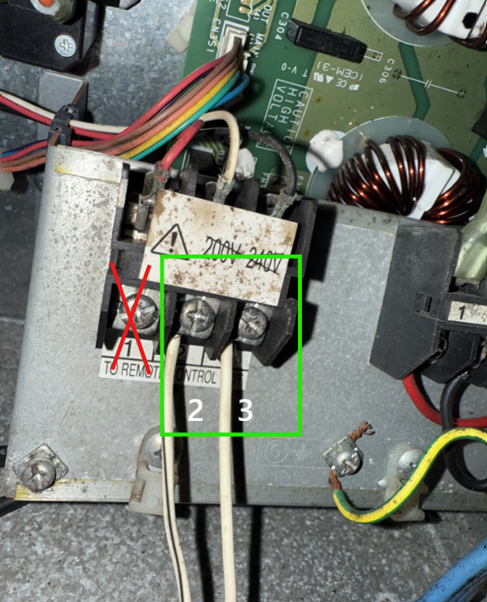

Connection
- Polarity is critical.

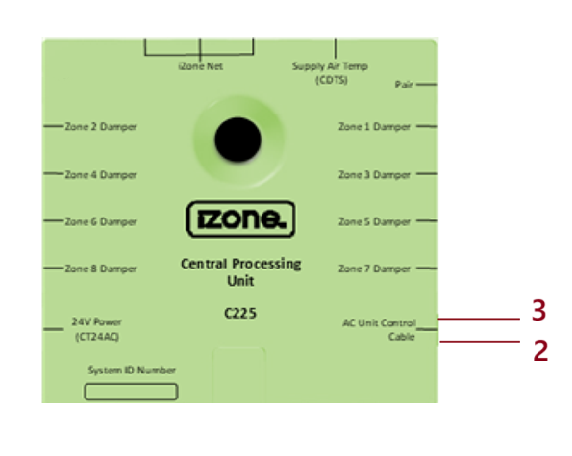

- Connect the AC unit control cable to 2 and 3 on the Fujitsu indoor board.
- Use shielded, 2 core, twisted pair cable (not supplied by iZone)
Notes
- Do NOT use the terminal 1 (12V) when connecting to an iZone system
R32 Gas Type - ARTH Series
Compatibility
| R32 Gas Type | INDOOR | OUTDOOR | AC Unit module |
|---|---|---|---|
| Mid Static Slimline | ARTH18KMTAP | AOTH18KBTA | C325F2 |
| Mid Static Slimline | ARTH24KMTAP | AOTH24KBTA | C325F2 |
| Mid Static Slimline | ARTH30KMTAP | AOTH30KBTA | C325F2 |
| Mid Static Slimline | ARTH36KMTAP | AOTH36KBTA | C325F2 |
| Mid Static Slimline | ARTH45KMTAP | AOTH45KBTA | C325F2 |
| Mid Static Slimline | ARTH54KMTAP | AOTH54KBTA | C325F2 |
| Mid Static Slimline High Performance | ARTH24KMTAP | AOTH24KCTA | C325F2 |
| Mid Static Slimline High Performance | ARTH30KMTAP | AOTH30KCTA | C325F2 |
| High Static Single Phase High Performance | ARTH30KHTA | AOTH30KCTA | C325F2 |
| High Static Single Phase High Performance | ARTH36KHTA | AOTH36KCTA | C325F2 |
| High Static Single Phase High Performance | ARTH45KHTA | AOTH45KCTA | C325F2 |
| High Static Single Phase High Performance | ARTH54KHTA | AOTH54KCTA | C325F2 |
| High Static Single Phase High Performance | ARTH60KHTB | AOTH60KCTA | C325F2 |
| High Static Single Phase | ARTH24KHTA | AOTH24KBTA | C325F2 |
| High Static Single Phase | ARTH30KHTA | AOTH30KBTA | C325F2 |
| High Static Single Phase | ARTH36KHTA | AOTH36KBTA | C325F2 |
| High Static Single Phase | ARTH45KHTA | AOTH45KBTA | C325F2 |
| High Static Single Phase | ARTH54KHTA | AOTH54KBTA | C325F2 |
| High Static Single Phase | ARTH60KHTA | AOTH60KBTA | C325F2 |
| High Static Three Phase | ARTH36KHTA | AOTH36KRTA | C325F2 |
| High Static Three Phase | ARTH45KHTA | AOTH45KRTA | C325F2 |
| High Static Three Phase | ARTH54KHTA | AOTH54KRTA | C325F2 |
| High Static Three Phase | ARTH60KHTA | AOTH60KRTA | C325F2 |
Connection
- Polarity is critical.

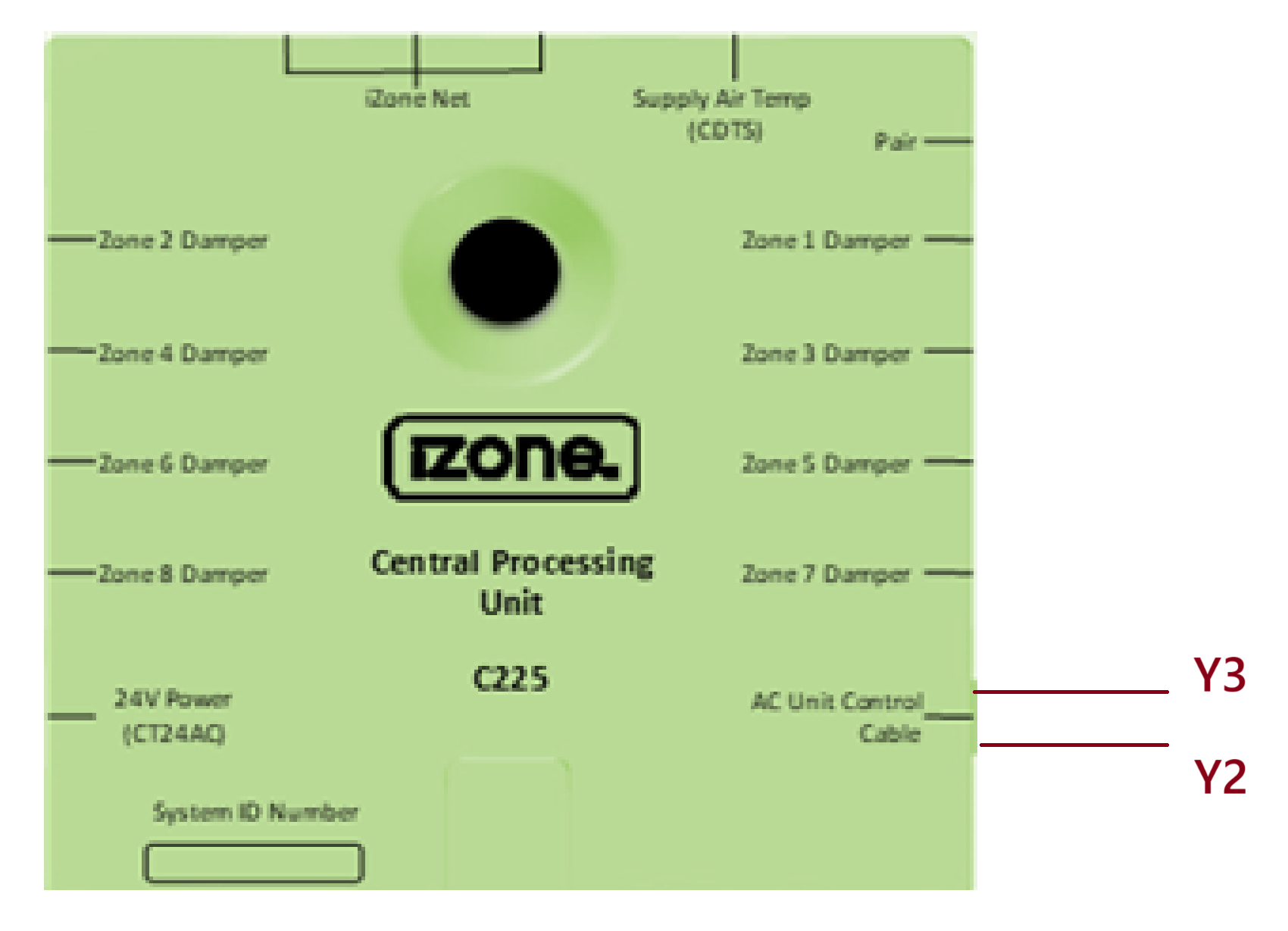

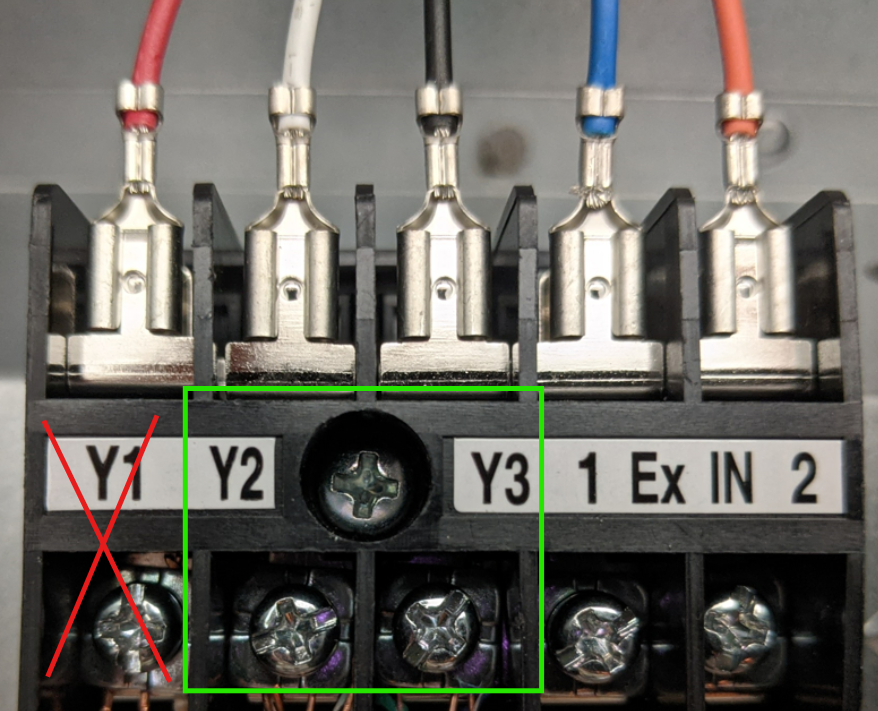

- Connect the AC unit control cable to Y2 and Y3 on the Fujitsu indoor board.
- Use shielded, 2 core, twisted pair cable (not supplied by iZone)
Notes
- Do NOT use the terminal Y1 (12V) when connecting to an iZone system

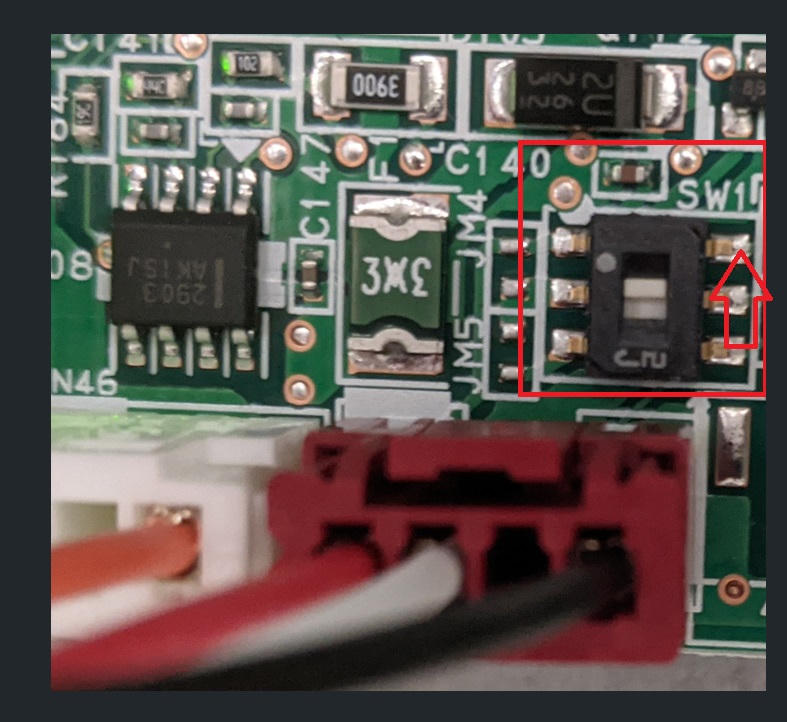

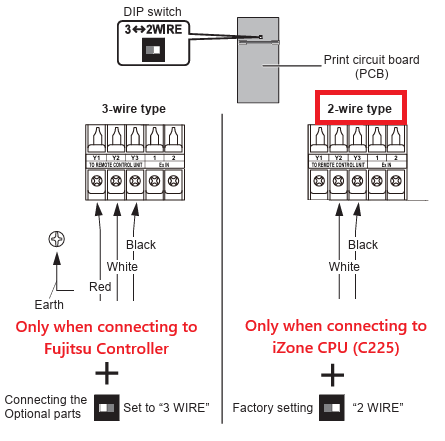

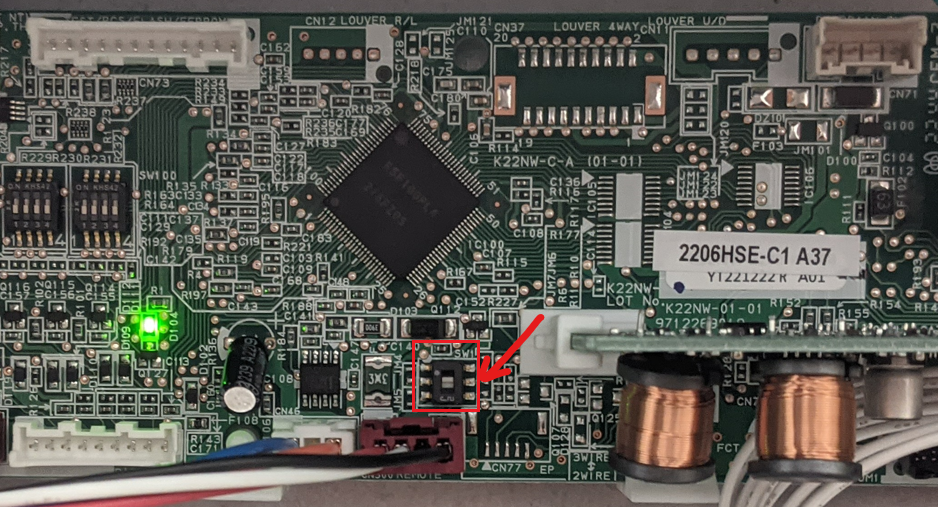

DIP Switch Settings
- Set DIP switch (SW1) into the UP position
Firmware and Updates
C325F2
C325F2 1.11 - Jun 2024
- fix fan speed selection
- improve AC message processing
