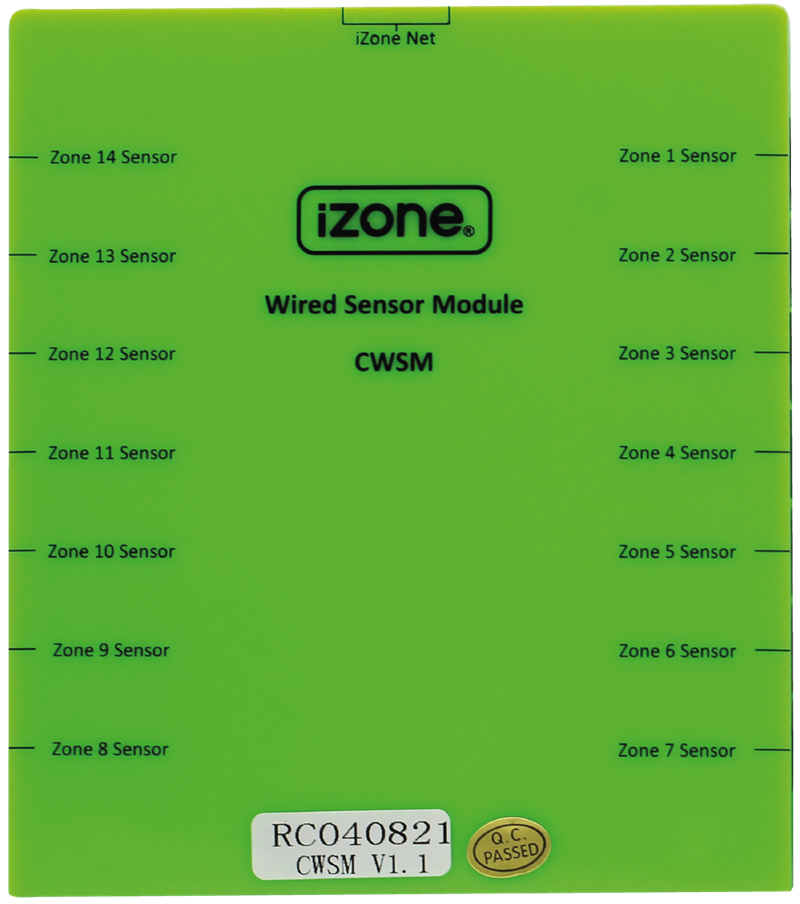

Wired sensor module
Part number: CWSM
Overview
The Wired Sensor Module (CWSM) connects to the CPU Module (C225) using a 1m CAT5 cable (CFC1S). All Wired Temperature Sensors (CSW) are then connected to the 14 available sensor slots on the CWSM. The CWSM forms part of the Wired Sensor Module Kit (CWSMK), which includes the CWSM and a 1m CAT5 cable (CFC1S).
Installation Guides

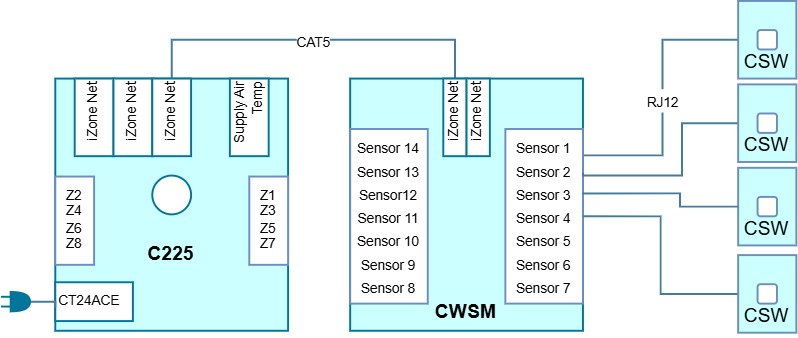

- Use a 1m CAT5 Cable (CFC1) to connect the iZone Net port on the CPU Module (C225) with the iZone Net port on the Wired Sensor Module (CSWM)
- The Wired Temperature Sensor (CSW) connects with RJ12 connector. The RJ12 connector recesses into the wall cavity and the hole must be large enough to accommodate the RJ12 connector. Provide insulation around the in the hole to prevent cold air inside the wall cavity from adversely influencing the sensor.
User Guides
Be sure to change the zone type as wired temperature sensor
Troubleshooting
No known issues have been documented for this product at this time.
Specifications
| Specification | Description |
|---|---|
| Power supply | From C225 (iZone Net port) |
| Communications | RJ45 CAN |
| Operating temperature | Up to 65⁰C |
| Number of sensors | 1 to 14 (RJ11) |
| Dimensions | 26H x 118W x 136L mm |
| Weight | 204g |
Firmware and Updates
CWSM 1.1 - Nov 2019
- Fixed a problem which would override RF sensor temperatures if both RF and wired sensors were used
